Muees430
Industrial-grade SLM 3D Printer
Larger format, higher precision
Use various high-tech technologies to improve printing speed and accuracy
Safety Gas Circulation
Built-in safety and venting valves ensure safety when printing.
Air Filtration System
Environmentally friendly, avoiding secondary pollution.
Double Sealed Piston
Ensures the sealing of the metal powder storage room.
Software
Self-developed full-process software system.
Product details
parameter of apparatus
Build Volume
430 × 340 × 400 mm
16.93 × 13.39 × 15.75 in
Build Chamber Size
440 × 350 × 440 mm
17.32 × 13.78 × 17.32 in
Laser Type
Yb-fiber Laser, 1 x 500 w / 2 x 500 w
Precision Optics
4 F-theta-lenses
Layer Thickness
20μm - 100μm
Max. Scanning Speed
6 m/s
Inert Gas
Argon / Nitrogen
Power
380 vAC, 50 Hz
Machine Dimensions
2950 x 1350 x 2200 mm
116.14 x 53.15 x 86.61 in
Machine Weight
2200 kg
Advantages and characteristics
-
Larger molding size creates more possibilities
-
Equipped with the original HALS high-speed 3D printing technology
-
Dynamic light intensity adjustment system makes the structure of parts more stable and higher precision
-
AI intelligent control system +4K optical engine, multiple sensors to automatically monitor the printing process
-
Intelligent interconnection + modular design, easy to achieve remote access, support secondary development, meet the diversified needs of various industries, to achieve large-scale production
-
Combined with automatic pressure, tension and temperature regulation, the mechanical properties of the molded parts are uniform and stable
-
Software, materials independent research and development
-
Support multiple materials

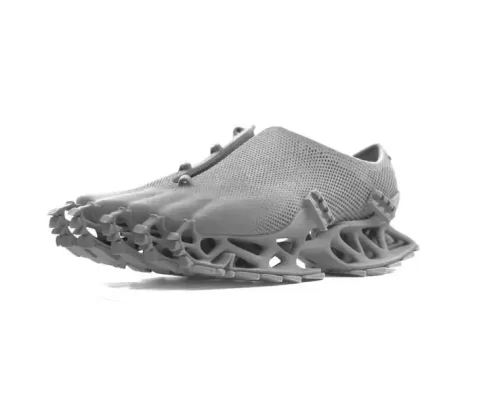

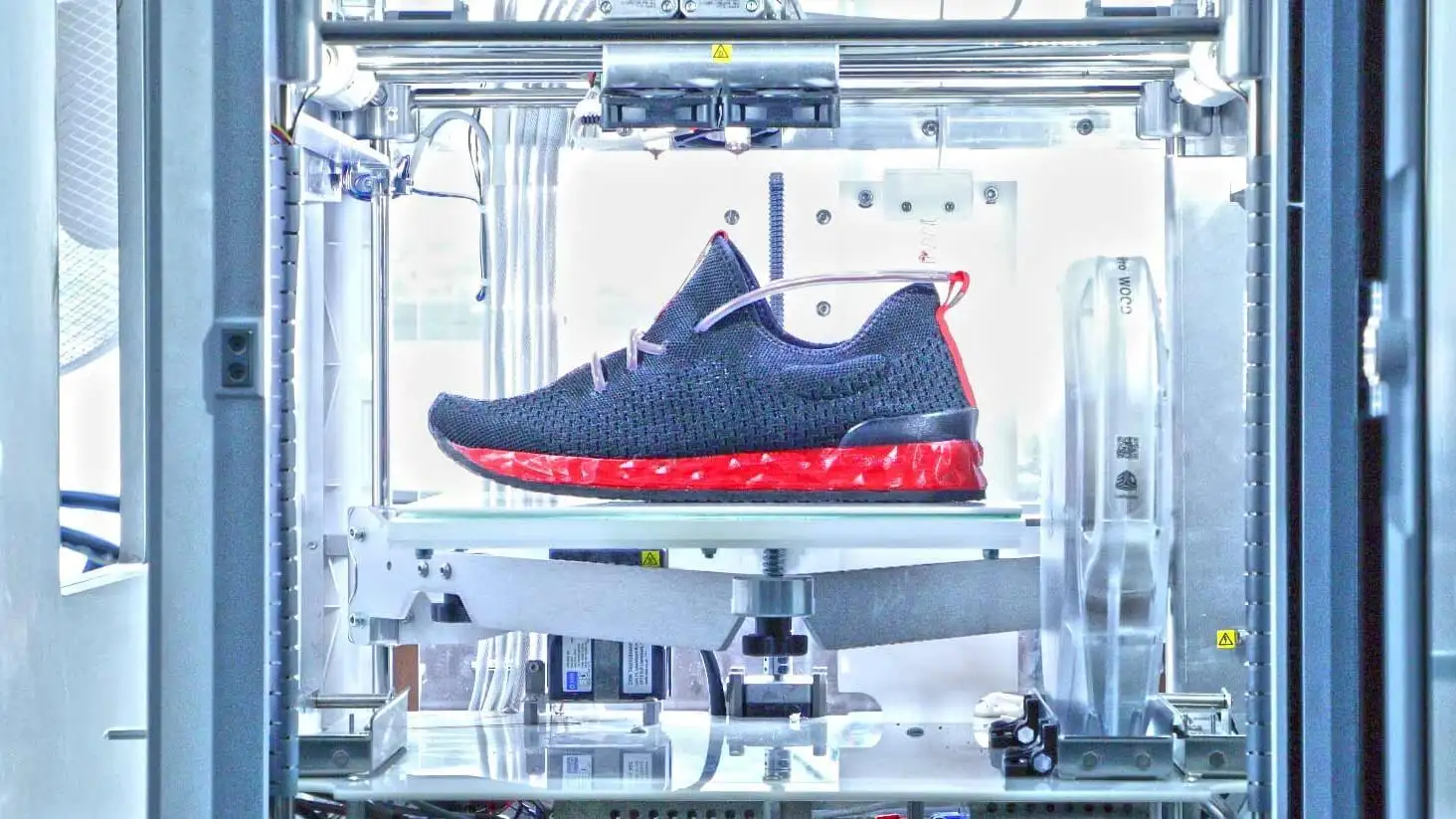

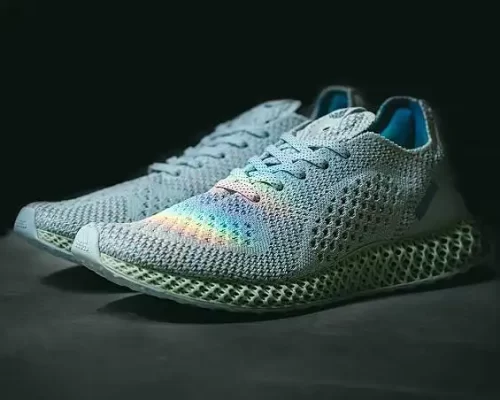

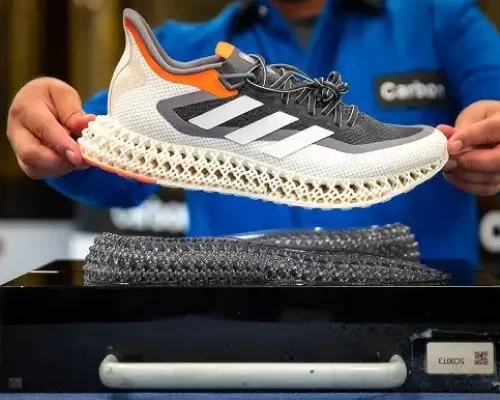

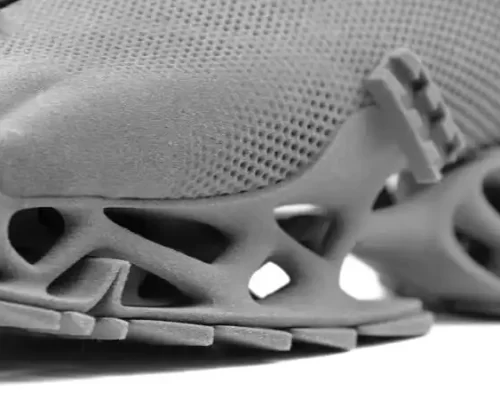

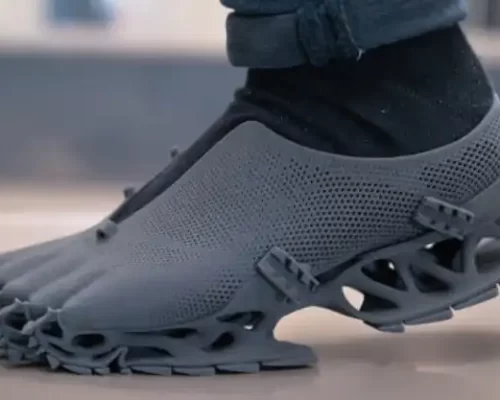

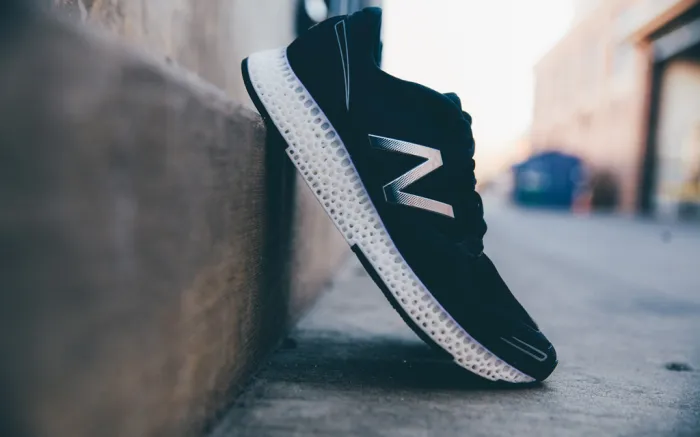

Sample display
